    Audio Mixer Guide

    Introduction

    This post and video provides an in-depth guide to setting up and operating the Fairhaven audio mixer, designed to accompany our detailed video tutorial. It covers everything from basic setup to advanced features, ensuring you can maximize the use of the audio mixer for your events.

    Getting Started

    Powering On

    • Amplifier: Locate the power button on the left-hand side. Make sure it’s turned on before starting your setup.
    • Mixer: The power switch is located near the power cord input. Flip the switch up to turn on the mixer.

    Basic Connections

    • The mixer accommodates various input types, including six XLR inputs for microphones, two stereo quarter-inch inputs for instruments, and RCA inputs for auxiliary devices.

    Mixer Overview

    Inputs and Outputs

    • XLR Inputs: Primarily for microphones. Provides balanced connections to minimize noise.
    • Stereo Quarter-Inch Inputs: For connecting keyboards, drum machines, or other stereo instruments.
    • RCA Inputs: Ideal for connecting MP3 players, mobile devices, or other line-level sources.

    Power Switch

    • Located at the back. Ensure the switch is in the ‘On’ position for operation.

    Channel Features

    Faders and Volume Control

    • Each channel has a fader for adjusting volume. Setting these to zero aligns with optimal loudness without risking feedback.

    Mute/On Button

    • This button acts as a mute; lit means the channel is active, unlit means muted.

    Equalization (EQ)

    • High, mid, and low knobs allow for tone shaping. Adjust these to enhance clarity or reduce feedback.

    Compressors

    • One-knob compressors help even out the dynamic range, particularly useful for vocal mics.

    Gain

    • Controls the sensitivity of each channel. Adjust this based on the loudness of the source.

    Special Functions

    Phantom Power

    • Essential for condenser microphones. Activate this to power such mics.

    USB Connectivity

    • Allows direct recording to a computer and playback from the computer through the mixer.

    Operation

    Setting Up a Microphone

    1. Gain Setting: Use the PFL (Pre Fader Listen) to accurately set the gain for each microphone, ensuring optimal input levels.
    2. Volume Adjustment: Use the channel fader to adjust the volume. Aim for a setting where the voice is clear and present without causing feedback.
    3. EQ and Compression: Fine-tune the sound using EQ knobs and compression to suit the speaker or performer.

    Troubleshooting and Tips

    • Check bus buttons if experiencing issues with sound routing. Ensure channels are assigned to the correct output.

    Locking the Mixer

    • Utilize the locking feature to prevent unauthorized adjustments, using the default code 0101.

    References

    HDMI Matrix Guide

    • Power Management: Always ensure the Matrix is powered on when starting your day and remember to turn it off post-use to save energy and extend the device’s life.
    • Keep this Handy Reference: Familiarize yourself with the output and input numbers to quickly make changes during live events or services.

    Switching Inputs and Outputs

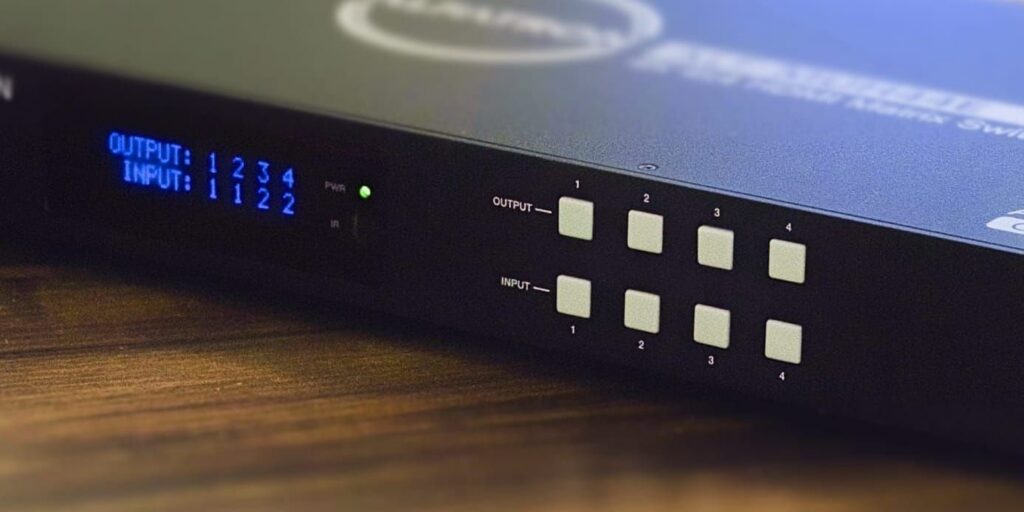

    Manage where your video sources are displayed using the Alfatron HDMI Matrix with ease:

    • Output Designations:
      • Output 1: Projector Overhead.
      • Output 2: Monitor Facing the Choir.
      • Output 3: Burton Hall Downstairs.
      • Output 4: Old Room Downstairs.
    • Input Sources:
      • Input 1: PC or Mac Mini.
      • Input 2: Mounted Camera.
    • Routing Video Sources:
      Simply press the output button until it flashes, then select the input source to direct a video source to a specific display. For example:
      • PC to Projector: Press 1, then 1.
      • PC to Choir Monitor: Press 2, then 1.
      • Camera to Burton Hall: Press 3, then 2.

    Adjusting EDID Settings

    Though the EDID settings have already been configured for optimal video and audio output across the church’s devices, understanding how to adjust these settings can be beneficial:

    • Purpose of EDID: Enables seamless communication between the Matrix and connected displays, ensuring the highest quality output.
    • Adjustment Access: While initially set, knowing how to access the Matrix menu for EDID adjustments can come in handy for future device changes or updates, ensuring continued optimal resolution and audio quality.
    • Default Configuration: Pre-configured to a 1080p resolution with two audio channels, it caters to the general needs of the church’s current setup.
    • Customization Options: For informational purposes, the Matrix includes resolution settings such as 720p, 1080p, 4K, and various audio configurations. The EDID can also be set to mimic the settings of a connected device, simplifying future setups.

    Additional Features and Settings

    Beyond the basics, the Matrix’s menu offers:

    • Advanced EDID customization.
    • Serial connection baud rate adjustments.
    • Network address settings.
      These features support integration into larger AV systems, controllable via front panel, IR remote, RS-232, LAN, and Web GUI.

    References

    • For detailed technical specifications and advanced operational instructions, consult the Alfatron HDMI Matrix manual.
